wire rope sling

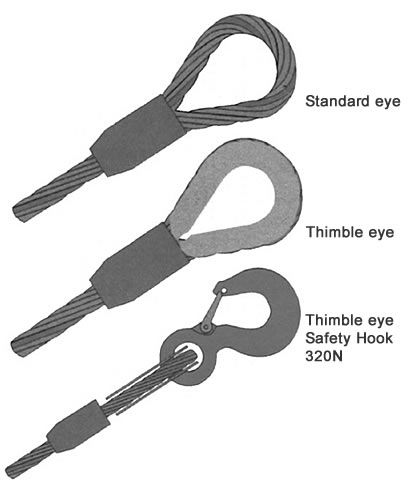

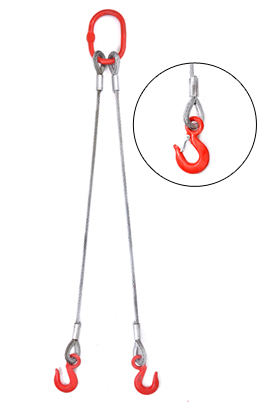

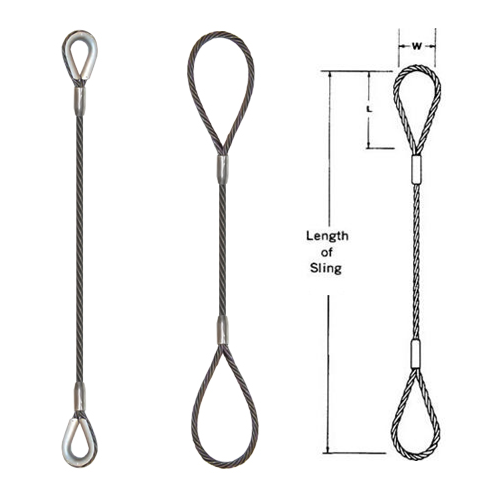

Wire rope slings come in single, two, three, and four-leg types. They can have soft or hard eyes on one or both ends. The WLL (working load limit) depends on the rope diameter, which ranges from 6 mm to 64 mm.
Quick specifications
6 mm – 64 mm
Diameter Range
0.5–24T
Straight Lift WLL
1–48T
Basket lift WLL
7:1
Safety factor
4:1
Safety factor (steel)
9 grades
WLL options

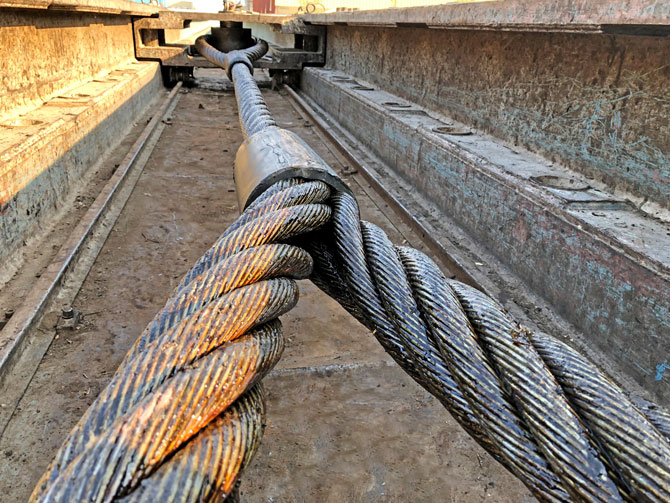

wire rope sling in use:
Working load limit table
| Rope Dia (mm) | Single Leg | Two Leg | 3 & 4 Leg | ||
|---|---|---|---|---|---|
|
|
|
|||
| 0° | 0°–45° | 45°–60° | 0°–45° | 45°–60° | |
| WORKING LOAD LIMIT (TONNES) | |||||
| 8 | 0.82 | 1.15 | 0.82 | 1.72 | 1.23 |
| 9 | 1.00 | 1.40 | 1.00 | 2.10 | 1.50 |
| 10 | 1.30 | 1.80 | 1.30 | 2.73 | 1.95 |
| 11 | 1.50 | 2.10 | 1.50 | 3.15 | 2.25 |
| 12 | 1.80 | 2.50 | 1.80 | 3.80 | 2.70 |
| 13 | 2.10 | 2.90 | 2.10 | 4.40 | 3.15 |
| 14 | 2.50 | 3.50 | 2.50 | 5.25 | 3.75 |
| 16 | 3.30 | 4.60 | 3.30 | 6.90 | 4.95 |
| 18 | 4.10 | 5.70 | 4.10 | 8.60 | 6.15 |
| 19 | 4.60 | 6.40 | 4.60 | 9.65 | 6.90 |
| 20 | 5.10 | 7.10 | 5.10 | 10.70 | 7.65 |
| 22 | 6.20 | 8.70 | 6.20 | 13.00 | 9.30 |
| 24 | 7.40 | 10.30 | 7.40 | 15.50 | 11.10 |
| 26 | 8.60 | 12.00 | 8.60 | 18.05 | 12.90 |
| 28 | 10.00 | 14.00 | 10.00 | 21.00 | 15.00 |
| 32 | 13.10 | 18.30 | 13.10 | 27.50 | 19.65 |
| 36 | 16.60 | 23.20 | 16.60 | 34.85 | 24.90 |
| 38 | 18.50 | 25.90 | 18.50 | 38.85 | 27.75 |
| 40 | 20.60 | 28.80 | 20.60 | 43.25 | 30.90 |
| 42 | 22.60 | 31.60 | 22.60 | 47.45 | 33.90 |
| 44 | 24.80 | 34.70 | 24.80 | 52.10 | 37.20 |
| 48 | 29.50 | 41.40 | 29.50 | 61.95 | 44.25 |
| 52 | 34.80 | 48.70 | 34.80 | 73.10 | 52.20 |
| 56 | 40.20 | 56.30 | 40.20 | 84.40 | 60.30 |
| 60 | 46.20 | 64.70 | 46.20 | 97.00 | 69.30 |
| 64 | 54.80 | 76.70 | 54.80 | 115.10 | 82.20 |
| 71 | 66.60 | 93.20 | 66.60 | 139.85 | 99.90 |
| 76 | 76.50 | 107.10 | 76.50 | 160.65 | 114.75 |
| 83 | 89.60 | 125.50 | 89.60 | 188.20 | 134.46 |
| 89 | 101.00 | 141.40 | 101.00 | 212.10 | 151.50 |
| 103 | 129.00 | 180.60 | 129.00 | 270.90 | 193.50 |
